Speaker Type: Single 12" Professional Linear Array Full-range Speaker
Frequency Range: 60Hz - 20kHz
Sensitivity (1w/1m): 104dB
Impedance: 8Ω
Maximum Sound Pressure: 137dB
Input Power: 650W/1300W (Continuous/Peak)
Coverage Angle (H×V): 120°×10°
Size (H×W×D): 370mm×700×475mm
Bass Unit: 1×12" (B&C imported material linear array dedicated bass)
Tweeter Unit: 1×1.75" (B&C imported material linear array dedicated neodymium tweeter)
Input Connector: 2×Neutrik Speakon NL4MP
Cabinet Structure: High-quality birch plywood trapezoidal structure (front ported) (environmentally friendly paint)

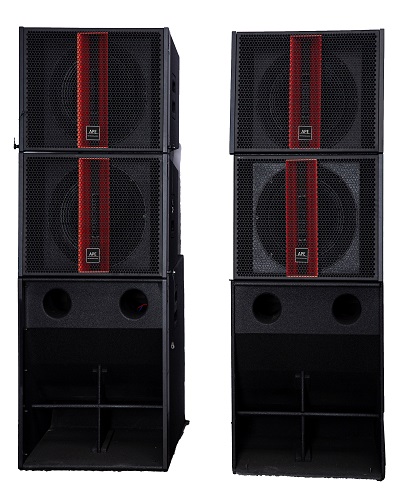

The LQ2000 series is a self-developed and launched multi-functional linear array professional speaker. The system adopts advanced frequency division technology, making the sound transmission distance farther and the frequency response wider. When multiple speakers are arranged to form a linear array, the acoustic wave interference between the speakers is minimized. Professional hanging system, safe, fast and reliable. The surface of the cabinet is sprayed with wear-resistant oily smooth black coating and has the function of water resistance and anti-corrosion. The hard surface coating can withstand various frictions and collisions, and is durable. The surface mesh is pasted with high sound transmission rate acoustic sponge to prevent the erosion of water, dust and rain. The specially designed linear array fiberglass reinforced plastic treble horn improves the output sound pressure. It is equipped with precise hanging piece degree holes to facilitate and simply adjust the speaker angle, making the on-site sound more uniform, the coverage wider, and the overall tone delicate, rich in layering, balanced and natural. Applicable to: Multi-functional conference halls, hotel banquet halls, bars, small and medium-sized live sound reinforcement, performance clubs, indoor and outdoor mobile stage performances, weddings, various indoor and outdoor large, medium and small-sized stage performances and other high-end engineering occasions.
